APOLLOMI 5050 SMD LED - APOLLOMI TECHNOLOGY CO,LTD

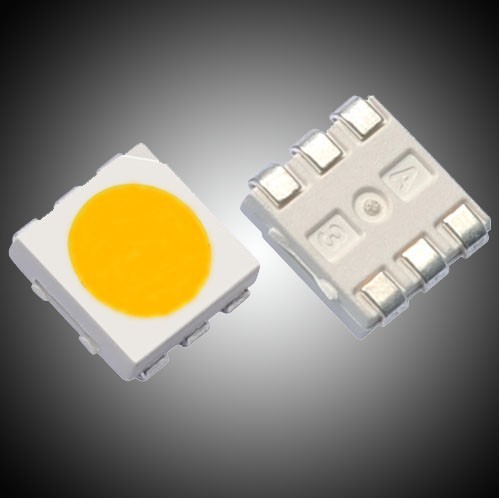

APOLLOMI 5050 SMD LED

Product Description

Specifications

5050 SMD LED CE and Rohs approved

1 Size: 5.0*5.0*1.95mm

2 Color: Red, yellow, blue, green, white and warm white

3 lifespan: 100000hrs, Taiwan chip

4 CRI: 75

Features:

1, Wide viewing angle 120 degree

2, Forward current: 60mA

3, Forward voltage: 1.9 to 2.4V, 3.0-3.8V

4, Package: 2000pcs/reel

5, High luminous intensity　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　

6, High consistency in light color, high cost-effective　　　　　　　　　　　　　　　

7. Low power consumption and long lifespan.

8, CE, RoHS compliant

9, Lead Time: 3 - 5 days

10, Payment Terms: TT in Advance　　　　　　　　　　　　　　　　　　　　　　　　

Applications:

1, Indoor and outdoor displays

2, Interior and exterior automotive lighting(e. G. Dashboard backlighting and brake lights

3, Backlight for LCD, switch, symbol display and illuminated advertising)

4, General use, such as LED tube, LED strips, LED bulbs and so on.

5. Backlighting: LCDs, LED tube, Key pads advertising.

6. LED tube, LED strip, LED bulb, LED spotlight and so on

Part Number ColorLuminousIntensity　(mcd)Wavelength(nm)Forward　 Voltage(v)ViewingAngle(Deg)

MinMaxMinMaxMinMax2θ1/2

HY-S5050RC-3PRed150020006206301.72.8120

HY-S5050YC-3PYellow150020005855951.72.8　 120

HY-S5050BC-3PBlue　800　10004604703.0 3.8　 120

HY-S5050PGC-3PGreen　1500　20005155253.0 3.8　 120

HY-S5050WC-3PWhite　4000　5000T Typical.x=0.3 TyTypical.x=0.33.0 3.8120

HY-S5050WC-3P-2White　5000　60003.0 3.8120
