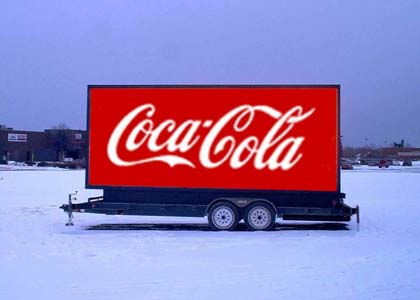

digital sign

Features & Advantages of Our product:

1.Reliable quality with 1st class LED chip & certified components

2.Up to 100,000 hours of display screen life with highly strict selectedly components.

3.High brightness, high contrast with clear vivid image quality even in direct, full-on sunlight environment.

4.Excellent heat dissipation ability with thermally efficient housing & enhanced uniformity.

5.Energy saving with low power consumption characteristics

6.Thin cabinet with seamless LED display screen face

7.Easy, fast installation and servicing

8.Any size, any shape can be customized basing on module-based design platform

Technical Data:

Line-and-column spacing(pixel pitch:mm) 10

Physical pixel density(dots/? 10000

Calibrated Brightness 8500 nits(adjustable)

Calibrated Brightness proportion ratio R: G: B = 30%:60%:10%

Color temperature 6,500° ?9,500° K(adjustable)

Contrast ratio 4,000:1

Brightness adjustment(dimming) 100 grade auto/manual-adjustment

Optimal view angle(degree)(50% brightness) Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off center)

Readability viewing angle Horizontal: 150° (75° off center); Vertical: 90° (+35°/-55° off center)

Color Capability 4.4 trillion

Refresh rate(Hz) >1200 Hz

Frame frequency(Hz) >60 Hz

LED Drive  mode constant-current drive

Lifetime(hours)(50% brightness) 100,000 hours

Interface port DVI interface(DVI connector)

Input signal Video: PAL/NTSC  Optioned: VGA, video, DVD,TV

Signal transmission direction Horizontal

Operating temperature(Celsius degree) -30?65'

Operation Humidity(RH) 0-99%

Protection grade IP65 front side/IP43 backside

Servicing Front and Back

Control mode Synchronous & Asynchronous image  available

Communication Options Wire Ethernet, Fiber Ethernet,RF wireless,GPRS

Power 120/240 V  AC single phase(50-60HZ)

Power consumption(W/?:Maximum 1000

Power consumption(W/?:Average 400

Screen Operation mode:  scan/static 1/4

Pixel Data

Pixel Configuration(DIP 346 1R1G1B ) Red wave length: 625~630nm

Green wave length: 525~530nm

Blue wave length: 470~475nm

Modular Module Data

Module Configuration(Pixels quantities of the module) Length 16

Height 16

Module Dimensions(mm) Length 160

Height 160

Width 20

Modular Modular Cabinet  Data

Cabinet Configuration(standard/modular)(module quantities of the cabinet) Length 8

Height 6

Cabinet Dimensions(standard/modular)(mm) Length 1280

Height 960

Width 170

Solutions & Product introduction about our LED display:

1. It has passed the Stringent CE standard and it has 0 electromagnetic interference, high stability and reliability.

2. It is very light and simple, for the display body is made by SMD modules, which reduce greatly the weight and thickness of the display and thereby reduce the difficulties of the assembling.

3. It supports a variety of stock data base, and keeps it updating timely and makes it a clearer control.

4. The programming is simple and practical, and is compatible with the database entry system which ensures the real-time data transmission from multi-interface and multi-channel ports.

5. Meanwhile we use the cylinders to fix on the screen body, which facilitates greatly the installation and later maintenance.

Company profile introduction:

Our products have elegant design, great reliability, easy operation, simple installation. Outdoor LED display is dustproof, waterproof, and can withstand the most severe outdoor environment. Even brightness and constant chroma level can be maintained during whole running life of our LED displays. Stunning flicker-free broadcast quality video images can also be provided. Our outdoor LED display is used in square, business center, billboard, commercial street, railway station. Apart from outdoor LED display, we can also offer customers quality indoor LED display, creative LED display, and LED display screen.

Businesses can use our advertising LED display board to promote their product and attract customer. By using our display board to decorate their shop front, business could raise company grade. Our advertising LED board is for lighting. It is used by businesses to broadcast information about their product and information in their respective industry. Our display functions as bulletin board. It is used to announce various information. It is for displaying celebrating word at festival and salutatory. We also provide sports stadium LED displays, square display screens, stage LED screen, giant displays, wall large led panel, and airport display screens.
