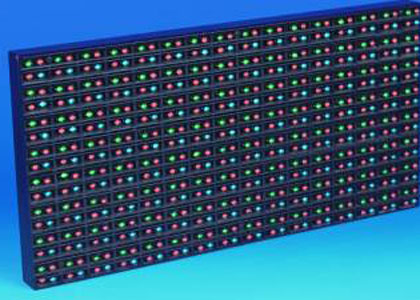

digital led signs

Features & Advantages of Our product:

Stable performance, wide applicability,high refresh rate, high protection grade,superb cost effective:

1.The cabinets, featuring great moisture and corrosion proofing, enable themselves to work in all weather conditions.

2.Superb refresh rate provides you coherent video effects to meet your needs for high display quality.

3.Superb cost effective offers you both top notch quality and reasonable price, maximizing the value of your investment.

Technical Data:

Pixel Configuration

Virtual/Visual pixel pitch(mm)

8

Physical/Real pixel pitch(mm)

16

Pixel density(dots/sqm(Virtual/Visual)

15625

Pixel density(dotssqm(physical/real)

3906

Calibrated Brightness

7500 nits(adjustable)

Color temperature

3,500° ???9,500° K(adjustable)

Contrast ratio

4,000:1

Brightness Adjustment

100 grade auto-adjustment

View angle(degree)(50% brightness)

Horizontal: 120° (80° off center); Vertical: 70° (+25°/-45° off center)

Color Capability

4.4 trillion

Refresh rate(Hz)

>2400 Hz

Frame frequency(Hz)

>60 Hz

Interface port

DVI interface(DVI connector)

Input signal

Video: PAL/NTSC  Optioned: VGA, video, DVD,TV

Protection grade

IP65 front side/IP54 backside

Operating temperature(Celsius degree)

-20???55'

Storage temperature(Celsius degree)

-30???55'

Operation Humidity(RH)

0-95%

Storage Humidity(RH)

0-99%

Lifetime(hours)(50% brightness)

100,000 hOurs

Servicing

Front and Back

Power supply

100-240V/50-60HZ

Screen Operation mode:  static

1

LED Drive

constant-current drive

Power consumption(W/???:Maximum

1094

Power consumption(W/???:Average

438

Solutions & Product introduction about our LED display:

The main characters of this kind of solution are:

1. It has a light and independent cabinet design, which not only in line with our company’s concept “light and simple??? but also meets the client’s needs of a convenient transport and installation.

2. The installation and removal are very easy and convenient. The modular cabinet allows the customers to make different combination of resources according to their needs, but it also has a higher requirement to its structure and standard degree. ERALED Optch provides the customers with a high standards and high-profile cabinet to meet the customer’s requirement of different combinations, and its standard parts links and combination solution will make the installation more convenient and simple.

3. It has a high stability. Before the shipment, each cabinet has to pass a strict anti-vibration test to prevent the damages caused by any improper transportation, and then it will be packaged with an independent anti-vibration flight case for a further protection to the display.

4. It supports multi-environment working. Considering the variety of the application environments of the rental display, we have added a series of functions to the screen, such as waterproof, damp proof, lightness adjustment and other functions in order to meet the needs of our customers.

5. The latest development of hanging structure of ERALED allows the hanging of both the independent cabinet and the whole screen, which not only makes the installation and the use of cabinet more convenient but also increases the practicality of the screen body.

Company profile introduction:

video floor,outdoor LED display,indoor LED display,LED message sign,rental LED screen,LED grid screen,LED curtain screen,soft LED screen,LED flexible curtain,LED curved screen,pixel led panel. With professional structure and electronic R&D team,therefor, ERALED LED products own advanced technology and competitive price in the market,which win high public praise all over the world. In LED screen series, LED video pixel,LED light string,indoor LED screen,outdoor LED screen,super thin led panel ,soft flexible LED screen,LED dancing floor are our elite items,on which we adopted many international standard patent technology. Pls click products button to view more.

We produce displays by utilizing advanced technologies and equipment. Due to high quality, all our LED displays are UL, CE, FCC and ETL certified, and are used in 2010 Shanghai Expo. Our LED display is used in 2008 Beijing Olympic and 2010 Shanghai Expo.

Our advertising LED display screen suits for sports stadium, stage, airport, railway station, bus station, highway, bank and hospital. We also design and develop video display control, lighting control and information display control system. We provide complete solutions for LED, LCD/PDP and LED lighting display system. Our LED display is of good weather resistance, low power consumption and uniform illumination.
