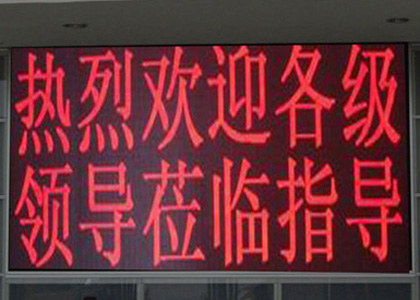

digital led sign

Features & Advantages of Our product

Oriented the conception of light-weight, less-occupation, clear-viewing, the thickness of each cabinet is tailored down to 6.5cm, is super thin and light-weight LED video display specially designed for rental or mobile use, as both backdrop applications and advertising billboard - rental LED screen. As super thin LED screen, adopting the supper thin, light power supply and electric fan, and FLAKE products never occupy unnecessary room needed by other devices; and also never puts unnecessary weight to the mounting structures.

The super-bright SMD 3-in-1 LED pixel configuration brings true possibilities of ensuring the image and video sharp, exquisite and brilliant enough for stage events, presentation, TV studio, etc.

Key benefits

Phenomenal black levels

4,0001 contrast ratio

2,000 NIT brightness

16-bit color processing

Replaceable shaders

Consistent uniformity

High Definition-ready

Modular creativity

Technical Data

Line-and-column spacing(pixel pitchmm) 14.0

Physical pixel density(dots?? 5102

Calibrated Brightness  8500 nits(adjustable)

Calibrated Brightness proportion ratio R G B = 30%60%10%

Color temperature 6,500° ??9,500° K(adjustable)

Contrast ratio 4,0001

Brightness adjustment(dimming) 100 grade automanual-adjustment

Optimal view angle(degree)(50% brightness)  Horizontal 120° (60° off center); Vertical 70° (+25°-45° off center)

Readability viewing angle Horizontal 150° (75° off center); Vertical 90° (+35°-55° off center)

Color Capability 4.4 trillion

Refresh rate(Hz) 1200 Hz

Frame frequency(Hz) 60 Hz

LED Drive  mode constant-current drive

Lifetime(hours)(50% brightness)  100,000 hours

Interface port DVI interface(DVI connector)

Input signal Video PALNTSC  Optioned VGA, video, DVD,TV

Signal transmission direction Horizontal

Operating temperature(Celsius degree) -30??65'

Operation Humidity(RH) 0-99%

Protection grade IP65 front sideIP43 backside

Servicing Front and Back

Control mode Synchronous & Asynchronous image  available

Communication Options Wire Ethernet, Fiber Ethernet,RF wireless,GPRS

Power 120240 V  AC single phase(50-60HZ)

Power consumption(W??Maximum 1000

Power consumption(W??Average 400

Screen Operation mode  scanstatic  14

Pixel Data

Pixel Configuration(DIP 346 1R1G1B ) Red wave length 625~630nm

Green wave length 525~530nm

Blue wave length 470~475nm

Modular Module Data

Module Configuration(Pixels quantities of the module) Length 16

Height 16

Module Dimensions(mm) Length 224

Height 224

Width 20

Modular Modular Cabinet  Data

Cabinet Configuration(standardmodular)(module quantities of the cabinet) Length 5

Height 5

Cabinet Dimensions(standardmodular)(mm) Length 1120

Height 1120

Width 170

Solutions & Product introduction about our LED display

LED display solutions bring advanced technologies and a world of experience to support or stage memorable TV & fashion shows, concerts, motor shows, exhibitions, political conferences, sporting spectaculars and many more indoor or outdoor events. Modular lightweight design makes setup fast and flexible.
