led curtain screen

led curtain screen

Features & Advantages of Our product:

1.Ambient environment controller continuously detects light conditions and automatically adjusts screen brightness.

2.Tilted LED configuration reduces light pollution by 26% and directs 37% more brightness toward targeted viewing areas.

3.FCC and ETL certified for safe use in all global regions

4.PFC - Reduces mains harmonics and mitigates electrical impact on power networks, improving stability while conserving energy.

5.RoHS - All components contain no lead, mercury, cadmium, Cr6, PBB, or PBDE)

6.EMC - Operates in a self-contained electromagnetic field, unaffected by surrounding electrical devices, and causing no interference to other devices (cell phones, medical devices, vehicle safety features, etc.).

7.Efficient components last longer, produce less heat, and require no HVAC, resulting in considerably less power.

Technical Data:

Line-and-column spacing(pixel pitch:mm) 12

Physical pixel density(dots/? 6944

Calibrated Brightness 8500 nits(adjustable)

Calibrated Brightness proportion ratio R: G: B = 30%:60%:10%

Color temperature 6,500° ?9,500° K(adjustable)

Contrast ratio 4,000:1

Brightness adjustment(dimming) 100 grade auto/manual-adjustment

Optimal view angle(degree)(50% brightness) Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off center)

Readability viewing angle Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off center)

Color Capability 4.4 trillion

Refresh rate(Hz) >1200 Hz

Frame frequency(Hz) >60 Hz

LED Drive  mode constant-current drive

Lifetime(hours)(50% brightness) 100,000 hours

Interface port DVI interface(DVI connector)

Input signal Video: PAL/NTSC  Optioned: VGA, video, DVD,TV

Signal transmission direction Horizontal

Operating temperature(Celsius degree) -30?65'

Operation Humidity(RH) 0-99%

Protection grade IP65 front side/IP43 backside

Servicing Front and Back

Control mode Synchronous & Asynchronous image  available

Communication Options Synchronous & Asynchronous image  available

Power 120/240 V  AC single phase/50-60HZ

Power consumption(W/?:Maximum 900

Power consumption(W/?:Average 360

Screen Operation mode:  scan/static 1/4

Pixel Data

Pixel Configuration(DIP 346 1R1G1B ) Red wave length: 625~630nm

Green wave length: 525~530nm

Blue wave length: 470~475nm

Modular Module Data

Module Configuration(Pixels quantities of the module) Length 16

Height 16

Module Dimensions(mm) Length 192

Height 192

Width 20

Modular Cabinet  Data

Cabinet Configuration(standard/modular)(module quantities of the cabinet) Length 5

Height 5

Cabinet Dimensions(standard/modular)(mm) Length 960

Height 960

Width 170

Solutions & Product introduction about our LED display:

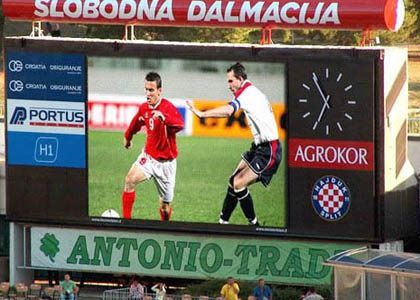

LED Curtain Screen with characteristics of light weight, easy installation, large pixel pitch, high cost-effectiveness and light/wind transmission, which is mainly used as backgrounds of outdoor and indoor concerts, screen wall of high-rise building, club and ballroom and advertising led display screen. Particularly design for indoor and outdoor installation stressing remote image effect and transparency. With features of bright color, quick respond, high reliability, long life-span and friendly to environments. Without fans and noise, the complete screen is able to operate between -30?60?with low power consumption.

Company profile introduction:

We have more than 21 years researching & manufacturing experience in this field. Our mass production mode & 30000 SQM manufacturing base guarantee our high quality, economic average cost & fast delivery ability.

Our advanced management regulation, strict quality control system & our experienced, responsible and reliable 1200 staff ensure you the best quality, user friendly product and trouble free after sales service. ERALED helps you concentrate all your time and energy on your main business by the perfect production & service system.

ERALED strong, experienced & reliable R&D team ensure any kinds of your OEM, ODM cooperation complete in a very fast speed, high quality and strong delivery ability.

ERALED fast growth needs your help, support, wisdom & strength. We are still open for local cooperation with you in your district. If you have interest to be our partner in your local district, please let us know.
