APOLLOMI led curve



Features & Advantages of Our product:

Our giant LED display have a high level of smoothness, great structural strength and outstanding pressure resistant performance. With further treatment for screen smoothness, screen turns out to have high strength and good smoothness. Our giant LED display as well as our other display are UL, CE, FCC, and ETL certified.

Technical Data:

Line-and-column spacing(pixel pitch:mm) 12

Physical pixel density(dots/? 6944

Calibrated Brightness 8500 nits(adjustable)

Calibrated Brightness proportion ratio R: G: B = 30%:60%:10%

Color temperature 6,500° ?9,500° K(adjustable)

Contrast ratio 4,000:1

Brightness adjustment(dimming) 100 grade auto/manual-adjustment

Optimal view angle(degree)(50% brightness) Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off center)

Readability viewing angle Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off center)

Color Capability 4.4 trillion

Refresh rate(Hz) >1200 Hz

Frame frequency(Hz) >60 Hz

LED Drive  mode constant-current drive

Lifetime(hours)(50% brightness) 100,000 hours

Interface port DVI interface(DVI connector)

Input signal Video: PAL/NTSC  Optioned: VGA, video, DVD,TV

Signal transmission direction Horizontal

Operating temperature(Celsius degree) -30?65'

Operation Humidity(RH) 0-99%

Protection grade IP65 front side/IP43 backside

Servicing Front and Back

Control mode Synchronous & Asynchronous image  available

Communication Options Synchronous & Asynchronous image  available

Power 120/240 V  AC single phase/50-60HZ

Power consumption(W/?:Maximum 900

Power consumption(W/?:Average 360

Screen Operation mode:  scan/static 1/4

Pixel Data

Pixel Configuration(DIP 346 1R1G1B ) Red wave length: 625~630nm

Green wave length: 525~530nm

Blue wave length: 470~475nm

Modular Module Data

Module Configuration(Pixels quantities of the module) Length 16

Height 16

Module Dimensions(mm) Length 192

Height 192

Width 20

Modular Cabinet  Data

Cabinet Configuration(standard/modular)(module quantities of the cabinet) Length 5

Height 5

Cabinet Dimensions(standard/modular)(mm) Length 960

Height 960

Width 170

Solutions & Product introduction about our LED display:

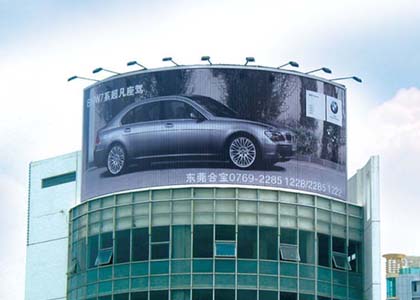

curve LED display screen is a new application of the wonderful LED video display:360 degree arc LED display screen, semi-curve LED display, indoor & outdoor full color commercial advertising use arc LED video display is really a very wonderful and prosperous market.

We have some very big arc display project in Germany (45SQM P12mm outdoor 3RGB), Poland (60 SQM P16mm outdoor 3RGB) & Egypt (P20mm outdoor 3RGB 25 SQM), the customers feel satisfied with the impressive effect and achieve much more attention & revenue than they expected.

Company profile introduction:

ERALED Optoelectronics Co., Ltd is a professional LED products supplier. Our factory founded in Shenzhen Special Economic Zone, China; located in Bao'an District. Through 21 years developing, ERALED has become a leading company, specializing in LED screen and LED lighting’s manufacturing, R&D , and sales

ERALED possesses the self-contained producing system: 12 advanced outdoor DIP LED screen lines and 5 indoor SMT production line. 6 set Wave Soldering machine and 3 set Reflow Soldering machine. On the other hand, we own 2 assemble line with 6000 SQM aging text floor. All the above hard devices together with our 1200 professional producing and managing staff ensure your order can finish in good quality and fast speed..

We ERALED values the quality as our life. From the perchase of raw material to the package of finished products, we take each step into implement according to the ISO9001 international quality control system strictly. Since the strictly demands from customers, our products have a very tough testing process. Before you get it, our LED products must have water-proof test, Dust-proof test, high temperature testing, Shock-resistant Testing, Salty-mist test, etc.

Besides this, ERALED also provides onsite product installation, debugging and maintenance service for our LED display. Such as:

1.After-sales service:

1)Service principles: response in time, solve problems as soon as possible and ensure the use.

2)Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.

3)Service scope:If the users find any problem that cannot be solved, please contact with Our company, we can response in 24 hours. In order to shorten the maintenance time, our company will deploy some spare parts such as power and chips etc.

4)Under normal use and storage, our company will be responsible for the equipments.

2.Pre-sales service:

1)Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.

2)Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection

3.More details about your sercies:

24/7 technical support

Pro-active service monitoring

Annual preventive maintenance

Repair, replace or exchange

Environmentally responsible and community friendly

Worldwide partners:ERALED has its own facilities for Marketing, Customer Support, R&D and Manufacturing in China, Europe, North America, South America, Africa and Middle East.

ERALED products are widely used in entertainment venues, sports stadium, waiting room, exhibition building, performance center, square, commercial street. ERALED ad. LED panel suit for entertainment venues, sports stadium, stage, airport, railway station, bus station, highway, bank etc. Our LED display has the advantages of good weather resistance, low power consumption and uniform illumination.
