led display arc

Features & Advantages of Our product:

We can provide mounting brackets & a full range of LED display systems, including: control systems, power supply (outlet), software, accessories, installation of structural drawings and other services.

Deep blacks, bright whites, wide viewing angles, high brightness & 4,000 to 1 contrast ratio ?resulting in razor-sharp, high-bright images. Fit for installation requiring close viewing and increased contrast.

Technical Data:

?Technical Specification:

10.24 by 7.68 meters 78.6432 sqm PH20mm 1R1G1B 3 in 1 SMD indoor LED video display screen

Line-and-column spacing(pixel pitch:mm) 20

Physical pixel density(dots/? 2500

Calibrated Brightness 1800 nits(adjustable)

Calibrated Brightness proportion ratio R: G: B = 30%:60%:10%

Color temperature 6,500° ?9,500° K(adjustable)

Contrast ratio 4,000:1

Brightness adjustment(dimming) 100 grade auto/manual-adjustment

Optimal view angle(degree)(50% brightness) Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off center)

Readability viewing angle Horizontal: 150° (75° off center); Vertical: 90° (+35°/-55° off center)

Color Capability 4.4 trillion

Refresh rate(Hz) >1200 Hz

Frame frequency(Hz) >60 Hz

LED Drive  mode constant-current drive

Lifetime(hours)(50% brightness) 100,000 hours

Interface port DVI interface(DVI connector)

Input signal Video: PAL/NTSC  Optioned: VGA, video, DVD,TV

Signal transmission direction Horizontal

Operating temperature(Celsius degree) -30?65'

Operation Humidity(RH) 0-99%

Protection grade IP53 front side/IP43 backside

Servicing Front and Back

Control mode Synchronous & Asynchronous image  available

Communication Options Wire Ethernet, Fiber Ethernet,RF wireless,GPRS

Power 120/240 V  AC single phase(50-60HZ)

Power consumption(W/?:Maximum 700

Power consumption(W/?:Average 280

Screen Operation mode:  scan/static 1/4

Pixel Data

Pixel Configuration(SMD 3 in 1 ) Red wave length: 625~630nm

Green wave length: 525~530nm

Blue wave length: 470~475nm

Modular Module Data

Module Configuration(Pixels quantities of the module) Length 16

Height 16

Module Dimensions(mm) Length 320

Height 320

Width 7

Modular Modular Cabinet  Data

Cabinet Configuration(standard/modular)(module quantities of the cabinet) Length 8

Height 6

Cabinet Dimensions(standard/modular)(mm) Length 2560

Height 1920

Width 170

Screen Data

Screen Configuration (only e.g. standard cabinet quantities of the screen) Length 4

Height 4

Screen Dimensions(m) Length 10.2400

Height 7.6800

Screen Size(? ?/td> 78.6432

Recommend Optimal Viewing Distance: Minimum & Maximum Min 12

Max 272

Physical Resolution(dots/pixels) Length 512

Height 384

Aspect Ratio 1.33333

Solutions & Product introduction about our LED display:

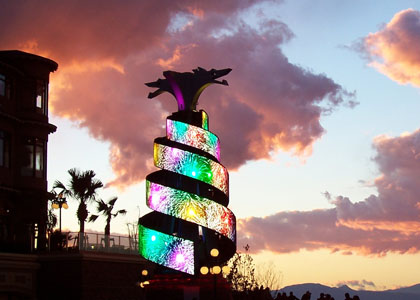

Arc LED video display:

Arc/curve LED display screen is a new application of the wonderful LED video display:360 degree arc LED display screen, semi-curve  led panel display, indoor & outdoor full color commercial advertising use arc LED video display is really a very wonderful and prosperous market.

We have some very big arc display project in Germany (45SQM P12mm outdoor 3RGB), Poland (60 SQM P16mm outdoor 3RGB) & Egypt (P20mm outdoor 3RGB 25 SQM), the customers feel satisfied with the impressive effect and achieve much more attention & revenue than they expected.

Company profile introduction:

Worldwide partners:ERALED has its own facilities for Marketing, Customer Support, R&D and Manufacturing in China, Europe, North America, South America, Africa and Middle East.

ERALED possesses the self-contained producing system: 12 advanced outdoor DIP LED screen lines and 5 indoor SMT production line. 6 set Wave Soldering machine and 3 set Reflow Soldering machine. On the other hand, we own 2 assemble line with 6000 SQM aging text floor. All the above hard devices together with our 1200 professional producing and managing staff ensure your order can finish in good quality and fast speed..

We ERALED values the quality as our life. From the perchase of raw material to the package of finished products, we take each step into implement according to the ISO9001 international quality control system strictly. Since the strictly demands from customers, our products have a very tough testing process. Before you get it, our LED products must have water-proof test, Dust-proof test, high temperature testing, Shock-resistant Testing, Salty-mist test, etc.

ERALED products are widely used in entertainment venues, sports stadium, waiting room, exhibition building, performance center, square, commercial street. ERALED ad. LED display suit for entertainment venues, sports stadium, stage, airport, railway station, bus station, highway, bank etc. Our LED display has the advantages of good weather resistance, low power consumption and uniform illumination.

We have more than 21 years researching & manufacturing experience in this field. Our mass production mode & 30000 SQM manufacturing base guarantee our high quality, economic average cost & fast delivery ability.

Our advanced management regulation, strict quality control system & our experienced, responsible and reliable 1200 staff ensure you the best quality, user friendly product and trouble free after sales service. ERALED helps you concentrate all your time and energy on your main business by the perfect production & service system.

ERALED strong, experienced & reliable R&D team ensure any kinds of your OEM, ODM cooperation complete in a very fast speed, high quality and strong delivery ability.

ERALED fast growth needs your help, support, wisdom & strength. We are still open for local cooperation with you in your district. If you have interest to be our partner in your local district, please let us know.
