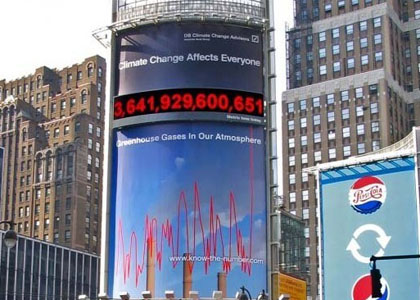

led signs display screen

Features & Advantages of Our product:

Built-in intelligence monitors LED color signature, temperature thresholds, and overall runtime.

Proprietary image processing produces sharp, brilliant images unmatched by industry competition.

Component selection and layout minimizes heat distribution and operating temperature.

Integrated color, contrast and brightness

16-bit processing generates 281 trillion colors for true color reproduction, year after year.

4,000:1 contrast ratio tempers screen brightness into sharp, focused images whether up close or far away.

7,600 NIT guarantees the screen stays brighter, providing 100,000 hours of continuous use.

Smart shaders

Modular shaders protect LEDs from harm and are field-replaceable when damaged or adjusting black levels.

Light traps deflect external light, minimizing the "washout effect."

Unique geometry drains rainwater, preventing visual obstructions.

Reliability and service

Redundant power system maintains power in the event of tile failure.

Intelligent diagnostic features allowing remote monitoring via the web.

Front-accessible and hot swappable tiles guarantee quick replacement and virtually zero downtime.

Service beyond the warrantee

Technical Data:

Line-and-column spacing(pixel pitch:mm) 14.0

Physical pixel density(dots/sqm) 5102

Calibrated Brightness 8500 nits(adjustable)

Calibrated Brightness proportion ratio R: G: B = 30%:60%:10%

Color temperature 6,500° ?9,500° K(adjustable)

Contrast ratio 4,000:1

Brightness adjustment(dimming) 100 grade auto/manual-adjustment

Optimal view angle(degree)(50% brightness) Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off center)

Readability viewing angle Horizontal: 150° (75° off center); Vertical: 90° (+35°/-55° off center)

Color Capability 4.4 trillion

Refresh rate(Hz) >1200 Hz

Frame frequency(Hz) >60 Hz

LED Drive  mode constant-current drive

Lifetime(hours)(50% brightness) 100,000 hours

Interface port DVI interface(DVI connector)

Input signal Video: PAL/NTSC  Optioned: VGA, video, DVD,TV

Signal transmission direction Horizontal

Operating temperature(Celsius degree) -30?65'

Operation Humidity(RH) 0-99%

Protection grade IP65 front side/IP43 backside

Servicing Front and Back

Control mode Synchronous & Asynchronous image  available

Communication Options Wire Ethernet, Fiber Ethernet,RF wireless,GPRS

Power 120/240 V  AC single phase(50-60HZ)

Power consumption(W/?:Maximum 1000

Power consumption(W/?:Average 400

Screen Operation mode:  scan/static 1/4

Pixel Data

Pixel Configuration(DIP 346 1R1G1B ) Red wave length: 625~630nm

Green wave length: 525~530nm

Blue wave length: 470~475nm

Modular Module Data

Module Configuration(Pixels quantities of the module) Length 16

Height 16

Module Dimensions(mm) Length 224

Height 224

Width 20

Modular Modular Cabinet  Data

Cabinet Configuration(standard/modular)(module quantities of the cabinet) Length 5

Height 5

Cabinet Dimensions(standard/modular)(mm) Length 1120

Height 1120

Width 170

Solutions & Product introduction about our LED display:

1. Separated and light cabinet structure. It’s not only meets our company's “light and simple?concept, but also meet the customer needs for easily transportation and installation.

2. It can be installed and disassembled very easily. According to your different requirements you can assemble each single cabinet as you like. ERALED’s high standard cabinet can meet the customer's need and provide the product with the character of more convenient and simple installation.

3. High security stability. Our product was approved by CCC. It belongs to the pure green light which with the low energy, low power and without electromagnetic interference (EMI).

4. Stage background wall with big pixel pitch and high brightness as well as support by special MDX system which brings more fantastic effects to the stage.

5. Our professional designer will provide the unique and aesthetic stage layout for you .

It supports the program which with the different format, different video sources and so on. Open your dream space.



Company profile introduction:

ERALED possesses the self-contained producing system: 12 advanced outdoor DIP led screen lines and 5 indoor SMT production line. 6 set Wave Soldering machine and 3 set Reflow Soldering machine. On the other hand, we own 2 assemble line with 6000 SQM aging text floor. All the above hard devices together with our 1200 professional producing and managing staff ensure your order can finish in good quality and fast speed..

We ERALED values the quality as our life. From the perchase of raw material to the package of finished products, we take each step into implement according to the ISO9001 international quality control system strictly. Since the strictly demands from customers, our products have a very tough testing process. Before you get it, our LED products must have water-proof test, Dust-proof test, high temperature testing, Shock-resistant Testing, Salty-mist test, etc.

ERALED products are widely used in entertainment venues, sports stadium, waiting room, exhibition building, performance center, square, commercial street. ERALED ad. LED display screen suit for entertainment venues, sports stadium, stage, airport, railway station, bus station, highway, bank etc. Our led panel display has the advantages of good weather resistance, low power consumption and uniform illumination.
