p5mm display

Features & Advantages of Our product:

1.Reliable quality with 1st class LED chip & certified components

2.Up to 100,000 hours of display screen life with highly strict selectedly components.

3.High brightness, high contrast with clear vivid image quality even in direct, full-on sunlight environment.

4.Excellent heat dissipation ability with thermally efficient housing & enhanced uniformity.

5.Energy saving with low power consumption characteristics

6.Thin cabinet with seamless LED display screen face

7.Easy, fast installation and servicing

8.Any size, any shape can be customized basing on module-based design platform

Technical Data:

?Technical Specification:

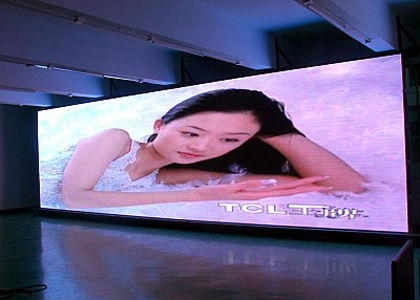

2.56 by 1.92 meters 4.9152 sqm PH5mm 1R1G1B 3 in 1 SMD indoor LED video display screen

Line-and-column spacing(pixel pitch:mm) 5

Physical pixel density(dots/? 40000

Calibrated Brightness 1800 nits(adjustable)

Calibrated Brightness proportion ratio R: G: B = 30%:60%:10%

Color temperature 6,500° ?9,500° K(adjustable)

Contrast ratio 4,000:1

Brightness adjustment(dimming) 100 grade auto/manual-adjustment

Optimal view angle(degree)(50% brightness) Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off center)

Readability viewing angle Horizontal: 150° (75° off center); Vertical: 90° (+35°/-55° off center)

Color Capability 4.4 trillion

Refresh rate(Hz) >1200 Hz

Frame frequency(Hz) >60 Hz

LED Drive  mode constant-current drive

Lifetime(hours)(50% brightness) 100,000 hours

Interface port DVI interface(DVI connector)

Input signal Video: PAL/NTSC  Optioned: VGA, video, DVD,TV

Signal transmission direction Horizontal

Operating temperature(Celsius degree) -30?65'

Operation Humidity(RH) 0-99%

Protection grade IP53 front side/IP43 backside

Servicing Front and Back

Control mode Synchronous & Asynchronous image  available

Communication Options Wire Ethernet, Fiber Ethernet,RF wireless,GPRS

Power 120/240 V  AC single phase(50-60HZ)

Power consumption(W/?:Maximum 700

Power consumption(W/?:Average 280

Screen Operation mode:  scan/static 1/4

Pixel Data

Pixel Configuration(SMD 3 in 1 ) Red wave length: 625~630nm

Green wave length: 525~530nm

Blue wave length: 470~475nm

Modular Module Data

Module Configuration(Pixels quantities of the module) Length 16

Height 16

Module Dimensions(mm) Length 80

Height 80

Width 7

Modular Modular Cabinet  Data

Cabinet Configuration(standard/modular)(module quantities of the cabinet) Length 8

Height 6

Cabinet Dimensions(standard/modular)(mm) Length 640

Height 480

Width 170

Screen Data

Screen Configuration (only e.g. standard cabinet quantities of the screen) Length 4

Height 4

Screen Dimensions(m) Length 2.5600

Height 1.9200

Screen Size(? ?/td> 4.9152

Recommend Optimal Viewing Distance: Minimum & Maximum Min 3

Max 68

Physical Resolution(dots/pixels) Length 512

Height 384

Aspect Ratio 1.33333

Solutions & Product introduction about our LED display:

LED Information Scheduling Display is widely used for command scheduling, for example: station, transportation command center, army command center etc. All displays for command scheduling system are almost the same. Except the normal strip display, there is colorful high definition display which can magnify the signals. Below is the description of the solution for the railway station.

Railway system database

Station departure

Waiting hall led display

Central system

Station room, route for indicative sign

Station Voice Broadcasting System

The whole dispatching system is composed of the dispatching system software and the hardware for display system. We only give a brief description to the system's hardware. Hardware system mainly composed of electricity equipment system, audio and video treatment system, controlling system, LED display, peripheral equipment.

Used for large-scale power scheduling centre,

Showing electricity running status in real time,

Normally use single color or double color display

Traffic scheduling LED display Used for traffic commanding centre, big display can amplify picture display effect, usually recommend full color high definition LED display

Security monitoring and control LED display Used for large-scale construction organization or coal, oil industry etc. Apply to monitor production and construction real time, usually recommend full color indoor high definition led display.
