p6mm led display



Features & Advantages of Our product:

High definition,high refresh rate, high brightness, high grey level, applicable for both indoor and outdoor:

1.High brightness enables longer viewing distance and ensures the spectators far from the screen can still enjoy what is shown,even under direct sunlight.

2.Extremely superb refresh rate provides you coherent video effects to meet your needs for high display quality.

3.15bit grey level processing ability presents you rich details, colors and vivid pictures.

Technical Data:

Technical Specification:

3.072 by 2.304 meters 7.0779 sqm PH6mm 1R1G1B 3 in 1 SMD indoor LED video display screen

Line-and-column spacing(pixel pitch:mm) 6

Physical pixel density(dots/? 27778

Calibrated Brightness 2000 nits(adjustable)

Calibrated Brightness proportion ratio R: G: B = 30%:60%:10%

Color temperature 6,500° ?9,500° K(adjustable)

Contrast ratio 4,000:1

Brightness adjustment(dimming) 100 grade auto/manual-adjustment

Optimal view angle(degree)(50% brightness) Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off center)

Readability viewing angle Horizontal: 150° (75° off center); Vertical: 90° (+35°/-55° off center)

Color Capability 4.4 trillion

Refresh rate(Hz) >1200 Hz

Frame frequency(Hz) >60 Hz

LED Drive  mode constant-current drive

Lifetime(hours)(50% brightness) 100,000 hours

Interface port DVI interface(DVI connector)

Input signal Video: PAL/NTSC  Optioned: VGA, video, DVD,TV

Signal transmission direction Horizontal

Operating temperature(Celsius degree) -30?65'

Operation Humidity(RH) 0-99%

Protection grade IP53 front side/IP43 backside

Servicing Front and Back

Control mode Synchronous & Asynchronous image  available

Communication Options Wire Ethernet, Fiber Ethernet,RF wireless,GPRS

Power 120/240 V  AC single phase(50-60HZ)

Power consumption(W/?:Maximum 1100

Power consumption(W/?:Average 440

Screen Operation mode:  scan/static 1/8

Pixel Data

Pixel Configuration(SMD 3 in 1 ) Red wave length: 625~630nm

Green wave length: 525~530nm

Blue wave length: 470~475nm

Modular Module Data

Module Configuration(Pixels quantities of the module) Length 32

Height 16

Module Dimensions(mm) Length 192

Height 96

Width 7

Modular Modular Cabinet  Data

Cabinet Configuration(standard/modular)(module quantities of the cabinet) Length 4

Height 6

Cabinet Dimensions(standard/modular)(mm) Length 768

Height 576

Width 170

Screen Data

Screen Configuration (only e.g. standard cabinet quantities of the screen) Length 4

Height 4

Screen Dimensions(m) Length 3.0720

Height 2.3040

Screen Size(? ?/td> 7.0779

Recommend Optimal Viewing Distance: Minimum & Maximum Min 4

Max 82

Physical Resolution(dots/pixels) Length 512

Height 384

Aspect Ratio 1.33333

Solutions & Product introduction about our LED display:

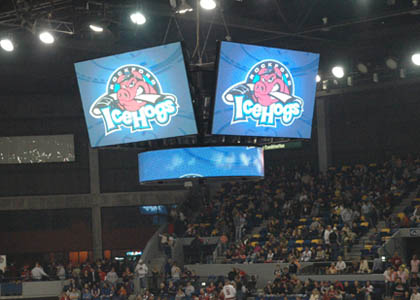

Sports stadium LED display

Everyday thousands of sports games (eg, football, basketball, volleyball, baseball, motorsports, soccer, softball etc) are being played throughout the world. We are one of the best company can bring the ultimate game-day experience to sports games fans everywhere. Our wide variety of scoreboards display the details clearly while  led display screen bring the game to life, giving fans the information and entertainment they crave.

Company profile introduction:

Worldwide partners:ERALED has its own facilities for Marketing, Customer Support, R&D and Manufacturing in China, Europe, North America, South America, Africa and Middle East.

ERALED products are widely used in entertainment venues, sports stadium, waiting room, exhibition building, performance center, square, commercial street. ERALED ad. led panel display suit for entertainment venues, sports stadium, stage, airport, railway station, bus station, highway, bank etc. Our LED display has the advantages of good weather resistance, low power consumption and uniform illumination.
