p6mm led panel

Features & Advantages of Our product:

Everyday thousands of sports games (eg, football, basketball, volleyball, baseball, motorsports, soccer, softball etc) are being played throughout the world. We are one of the best company can bring the ultimate game-day experience to sports games fans everywhere. Our wide variety of scoreboards display the details clearly while LED display bring the game to life, giving fans the information and entertainment they crave.

The combination of sports and commercial advertising can be traced back to the late 19th century. The advertising media evolves from athletes to the LED screen. The LED screen as a specific advertising media is generally used on the giant gymnasium, football field, in which full of mass audience. So, to place LED screen there is cost-effective. Comparing with the traditional ad. media, LED screen is much more attractive and can display lots of ad. informations, and it can be cyclic utilization, which make it an absolutely firstchoice for sports sponsors.

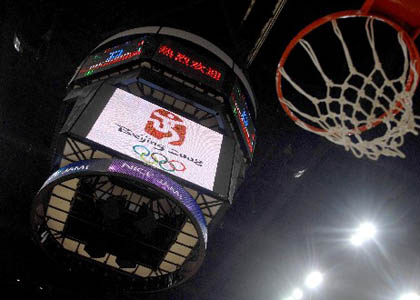

The led panel used on stadium can be divided into 3 kinds by applications. Sports stadium LED display, Events live broadcast LED display, LED score board.

For getting the best display effect, the LED screen must go through many strict tests; the 1st is the refresh frequency. For the commonly used LED screen, the refresh is 300~600HZ, this is good enough for humans eyes, but for the stadium used LED, such levels will cause the water wave. So a higher refresh frequency is necessary. Our products adopt the advanced control system from “Zdec? which guarantee the LED screen with 4000HZ fresh frequency, providing you the best display effect and. Meanwhile, the stable LED models: PH16 and PH20, ensure you a very good viewing quality even at a bright sunny day. You deserve it.

Second, for the screen will be place on the playground, we consider more for athletes. Our humanistic & customized, athlete protected stadium perimeter has the specific screen soft top cover and soft face veil protect athletes from damaged if hit onto the screen. We think of it before you ask for.

Another, for all the audience on site get the best viewing angle from the LED, we design the particular mounting leg for the screen, the viewing angle can be adjusted from vertical to off vertical 50 degree. We do that for you.

Technical Data:

?Technical Specification:

Line-and-column spacing(pixel pitch:mm) 6

Physical pixel density(dots/? 3906

Calibrated Brightness 8500 nits(adjustable)

Calibrated Brightness proportion ratio R: G: B = 30%:60%:10%

Color temperature 6,500° ?9,500° K(adjustable)

Contrast ratio 4,000:1

Brightness adjustment(dimming) 100 grade auto/manual-adjustment

Optimal view angle(degree)(50% brightness) Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off center)

Readability viewing angle Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off center)

Color Capability 4.4 trillion

Refresh rate(Hz) >1200 Hz

Frame frequency(Hz) >60 Hz

LED Drive  mode constant-current drive

Lifetime(hours)(50% brightness) 100,000 hours

Interface port DVI interface(DVI connector)

Input signal Video: PAL/NTSC  Optioned: VGA, video, DVD,TV

Signal transmission direction Horizontal

Operating temperature(Celsius degree) -30?65'

Operation Humidity(RH) 0-99%

Protection grade IP65 front side/IP43 backside

Servicing Front and Back

Control mode Synchronous & Asynchronous image  available

Communication Options Synchronous & Asynchronous image  available

Power 120/240 V  AC single phase/50-60HZ

Power consumption(W/?:Maximum 900

Power consumption(W/?:Average 360

Screen Operation mode static(1/1)

Pixel Data

Pixel Configuration(DIP 346 1R1G1B ) Red wave length: 625~630nm

Green wave length: 525~530nm

Blue wave length: 470~475nm

Modular Module Data

Module Configuration(Pixels quantities of the module) Length 16

Height 16

Module Dimensions(mm) Length 256

Height 256

Width 20

Modular Cabinet  Data

Cabinet Configuration(standard/modular)(module quantities of the cabinet) Length 4

Height 4

Cabinet Dimensions(standard/modular)(mm) Length 1024

Height 1024

Width 170

Solutions & Product introduction about our LED display:

basketball arena LED screen, indoor & outdoor football stadium led panel, stadium scoreboards LED screen, etc.

The most common use perimeter LED screen is P12mm, P14mm, P16mm, P20mm outdoor full color LED screen.

1R1G1B outdoor is the most mature outdoor full color LED display screen model and win the biggest market share in the whole LED display market. The high brightness & contrast level, high gray grade, perfect 4 times virtual effect make it become an ideal solution for the outdoor commercial advertising.

The most common use model is P12mm, P16mm, P20mm. This is just the most common use model for stadium arena LED display.

The dot correction system is very necessary for this application since the main audience come from the TV re-broadcasting. The Dot correction system has the characteristics of high fresh frequency, high gray grade & auto error alarm advantage.

For the big advertising use stadium arena led panel screen, the most common use model is P10 & P12mm virtual outdoor full color LED screen since the near viewing distance and TV-broadcasting require very high resolution.

For some small sports arena, there’s only very few sports events each year, so the rental & mobile LED screen is also very suitable for this application.

For the stadium scoreboards, the most common use model is P10mm 1R/1Y outdoor single color LED screen & P20mm 1R1G/1R1B outdoor tri color LED screen.

Company profile introduction:

ERALED leads the way in LED display manufacturing & technology. Its outdoor & indoor commercial advertising LED display, rental use LED display, fixed installation LED display, sports stadium perimeter LED display, mobile trailer LED display, water floating LED panel, transparent LED curtain display, digital LED billboard, LED mesh display screen for skyscraper's decoration, arc LED display, LED components & complete LED full color video systems undergo stringent quality control at ISO 9001-certified manufacturing plants.

ERALED offers user-friendly products that optimize productivity and business efficiency and maintain the highest standards of design and quality. Customer satisfaction is our prime objective and our high quality LED video display screen used in more than 140 countries and win a high reputation.

ERALED provides onsite product installation, debugging and maintenance service for our led panel. Such as:

1.After-sales service:

1)Service principles: response in time, solve problems as soon as possible and ensure the use.

2)Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.

3)Service scope:If the users find any problem that cannot be solved, please contact with Our company, we can response in 24 hours. In order to shorten the maintenance time, our company will deploy some spare parts such as power and chips etc.

4)Under normal use and storage, our company will be responsible for the equipments.

2.Pre-sales service:

1)Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.

2)Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection

3.More details about your sercies:

24/7 technical support

Pro-active service monitoring

Annual preventive maintenance

Repair, replace or exchange

Environmentally responsible and community friendly

Worldwide partners:ERALED has its own facilities for Marketing, Customer Support, R&D and Manufacturing in China, Europe, North America, South America, Africa and Middle East.

ERALED possesses the self-contained producing system: 12 advanced outdoor DIP LED screen lines and 5 indoor SMT production line. 6 set Wave Soldering machine and 3 set Reflow Soldering machine. On the other hand, we own 2 assemble line with 6000 SQM aging text floor. All the above hard devices together with our 1200 professional producing and managing staff ensure your order can finish in good quality and fast speed..

We ERALED values the quality as our life. From the perchase of raw material to the package of finished products, we take each step into implement according to the ISO9001 international quality control system strictly. Since the strictly demands from customers, our products have a very tough testing process. Before you get it, our LED products must have water-proof test, Dust-proof test, high temperature testing, Shock-resistant Testing, Salty-mist test, etc.

ERALED products are widely used in entertainment venues, sports stadium, waiting room, exhibition building, performance center, square, commercial street. ERALED ad. LED displays suit for entertainment venues, sports stadium, stage, airport, railway station, bus station, highway, bank etc. Our LED display has the advantages of good weather resistance, low power consumption and uniform illumination.

We have more than 21 years researching & manufacturing experience in this field. Our mass production mode & 30000 SQM manufacturing base guarantee our high quality, economic average cost & fast delivery ability.

Our advanced management regulation, strict quality control system & our experienced, responsible and reliable 1200 staff ensure you the best quality, user friendly product and trouble free after sales service. ERALED helps you concentrate all your time and energy on your main business by the perfect production & service system.

ERALED strong, experienced & reliable R&D team ensure any kinds of your OEM, ODM cooperation complete in a very fast speed, high quality and strong delivery ability.

ERALED fast growth needs your help, support, wisdom & strength. We are still open for local cooperation with you in your district. If you have interest to be our partner in your local district, please let us kno
