basketball LED displays screen

Screen parameter

pixel pitch                          16mm

LED configuration                2R,1G,1B

LED Density                       5102 pixel/sqm

Hor. Viewing angle              110deg

Vert. viewing angle              45deg

Ruggedness                       IP65

Temperature                       Operating-40~85deg Storage-55~150deg

Operating Humidity:            10~99%

Storage Humidity                 10~99%

Net Weight                         70KG

Certification                        UL,CE,ROHS,CCC

Cabinet Dimension               l:1280mm h :960mm w:187mm

Gray Scale:                         4096

Driving Method                     Static

Life span                            50000H

Luminance                          6000cd/aqm

Power                                Max:750w/sqm Average :300W/sqm

LED display description And Advantages

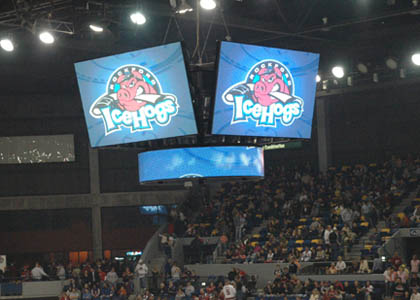

There are three parts of the whole that the Funneled screen, Circular screen and timing & scoring control system. The one hanged up in the center of the stadium is 22tons, and is called Funneled screen because of the funneled shape. There are four elevators above the screen to control the up and down of the screen via computers, and the maximum height is 15.922m from the bottom of the screen to the ground. The led display effect is controlled according to spectators? viewing angle as well as customers?demands.

There are Circular LED Display Screen around the ground floor of the stadium which is made of 110 screens and used to broadcast video images to build warm atmosphere, such as images of fireworks and water spraying, etc. The score and time could be set up and controlled by the timing and scoring control system, and projected to the funneled screen and the circular one via equipments in the control room at the same time, meantime, the timing clock and match clock in the dressing room are synchronous with the system, to ensure the perfect order and equal result of matches.
