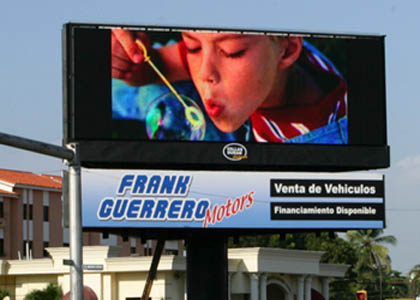

P16 Outdoor Advertising Screen

Screen parameter

pixel pitch 16mm

LED configuration 2R,1G,1B

LED Density 5102 pixel/sqm

Hor. Viewing angle 110deg

Vert. viewing angle 45deg

Ruggedness IP65

Temperature Operating-40~85deg Storage-55~150deg

Operating Humidity: 10~99%

Storage Humidity 10~99%

Net Weight 70KG

Certification UL,CE,ROHS,CCC

Cabinet Dimension l:1280mm h :960mm w:187mm

Gray Scale: 4096

Driving Method Static

Life span 50000H

Luminance 6000cd/aqm

Power Max:750w/sqm Average :300W/sqm

LED display description

We use unique dynamic white balance control system, to make the temperature of colors less than ±520K on the condition that the dynamic brightness is 10%-100%, to make screens reach white balance in all kinds of light in different circumstances when keep the best viewing distance. White balance is the key to measure the led display effect, and the colors?temperature standard of Display products is D65. Intellectualized and automatic brightness control system can control the brightness of screens according to the outside brightness get by the photoreceptor, to make images more soft to eyes, to save power, lengthen the life span, meantime, manual adjustment is available, such as to control the brightness and contrast according to the weather(sunny, cloudy, rainy or foggy, etc). Additionally, we control the brightness and white balance of each red led, green led and blue led to 6000K-9500K, to make the color seems pure no matter what the weather is like.
