outdoor movable led display

Screen parameter

pixel pitch 20mm

LED configuration 2R,1G,1B

LED Density 5102 pixel/sqm

Hor. Viewing angle 110deg

Vert. viewing angle 45deg

Ruggedness IP65

Temperature Operating-40~85deg Storage-55~150deg

Operating Humidity: 10~99%

Storage Humidity 10~99%

Net Weight 70KG

Certification UL,CE,ROHS,CCC

Cabinet Dimension l:1280mm h :960mm w:187mm

Gray Scale: 4096

Driving Method Static

Life span 50000H

Luminance 6000cd/aqm

Power Max:750w/sqm Average :300W/sqm

LED display description And Advantages

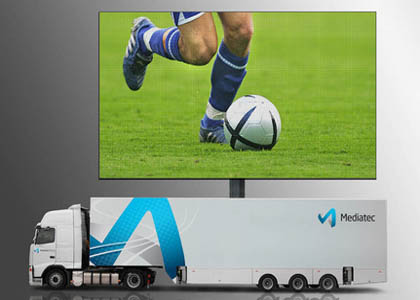

The Mobile LED Display is installed in a movable platform lorry which has a jacking system, so the screen is available to be 6m high if the system rises 2m. There is the light control system which could adjust the brightness of the led screen according to light outdoor. It’s suitable for stage background or concerts, large scale parties, etc, however, if we display movies, such as 《Gun Metal? then it will be a living visual impact to our eyes.

Movable LED Display installed on vehicles is a kind of new movable advertising media, which could be installed on cars, ships and boat seaplanes, etc. It can be used in the same situation with Rental LED Display Screen. There is some special features that it’s highly resistant to shock, so the connectors and clips used must be exquisite. Car kit LED screen include P10,P12,and P16, Ship kit LED screen P16,P20 and P25, boat seaplane LED screen P61.25,P80 and P100
