Mobile stage led displays

Screen parameter

 pixel pitch                          20mm

LED configuration                2R,1G,1B

LED Density                       5102 pixel/sqm

Hor. Viewing angle              110deg

Vert. viewing angle              45deg

Ruggedness                       IP65

Temperature                       Operating-40~85deg Storage-55~150deg

Operating Humidity:            10~99%

Storage Humidity                 10~99%

Net Weight                         70KG

Certification                        UL,CE,ROHS,CCC

Cabinet Dimension               l:1280mm h :960mm w:187mm

Gray Scale:                         4096

Driving Method                     Static

Life span                            50000H

Luminance                          6000cd/aqm

Power                                Max:750w/sqm Average :300W/sqm

LED display description And Advantages

Movable led screen includes Rental LED Display Screen and Movable LED panel Screen installed on vehicles. Rental led Screen is widely used for concert, exhibition, live meeting, news conference and live broadcast, etc. There are abundant features of this kind of product, such as easy package, tranStadiumation, installation, disassembling, and operation, meantime, cabinets are replaceable and light, with modules design and complete configuration.

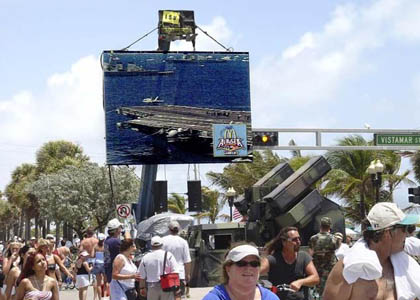

Movable LED Display Screen installed on vehicles is a kind of new movable advertising media, which could be installed on cars, ships and boat seaplanes, etc. It can be used in the same situation with LED Rental Display Screen. There is some special features that it’s highly resistant to shock, so the connectors and clips used must be exquisite. Car kit LED screen include P10,P12,and P16, Ship kit LED screen P16,P20 and P25, boat seaplane LED screen P61.25,P80 and P100
