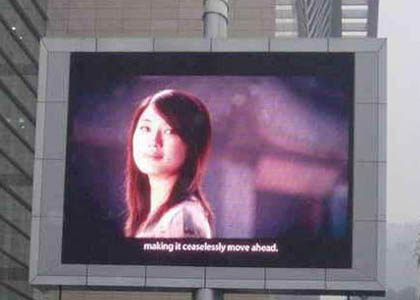

Wall Mounted Message LED display

Screen parameter pixel pitch 20nm

LED configuration 2R,1G,1B

LED Density 5102 pixel/sqm

Hor. Viewing angle 110deg

Vert. viewing angle 45deg

Ruggedness IP65

Temperature Operating-40~85deg Storage-55~150deg

Operating Humidity: 10~99%

Storage Humidity 10~99%

Net Weight 70KG

Certification UL,CE,ROHS,CCC

Cabinet Dimension l:1280mm h :960mm w:187mm

Gray Scale: 4096

Driving Method Static

Life span 50000H

Luminance 6000cd/aqm

Power Max:750w/sqm Average :300W/sqm

LED panel description and Advantages

Outdoor LED Display includes P10,P12,P14,P16,P18,P20,P25,P30 with single color, dual color led panel and full color LED display. All screens are made of imported LED chips, and exquisite components, with precise production, and regular operation. Some advantages are as follows: high brightness, high resolution, long life span, easy operation and maintenance, through multi-input control equipments. LED light source is made of the three primary colors: the red, pure green and pure blue, which are controlled via IC chips to achieve synchronous color change with computers, for example: the gradual change, jump color and chasing of scanning. It’s a new generation of environmental LED Screen because of the low power consumption, long life span and non-radiation.

a.It has three display modes: VGAIDE, Video, VGA

b.It has the Video Compression control function

c.It has the function of synchronous display

d.Line-Double function is used to switch the interlaced images into non-interlaced ones, to achieve the movable compensation.

e.One audio signal for amplifier and 2 for video input at least.

The grayscale is adjustable: it could be adjusted from zero to 65536 levels according to the situation, to get a perfect display effect.

Adjustable brightness Automatic brightness adjustment in 256 levels to make the adjustment more efficient.

Network control: Remote control in available, and a screen could be controlled by any computer connected, including the contents and the brightness.

Remote transmission: Advanced data transmission technology and high-speed communication chips are used to achieve the remote transmission. The max synchronous communication distance of video

Is 170m, and the max transmission distance by fiber is 10km.
