P6 led panel indoor

Screen parameter

pixel pitch 6nm

LED configuration 2R,1G,1B

LED Density 27777 pixel/sqm

Hor. Viewing angle 110deg

Vert. viewing angle 45deg

Ruggedness IP65

Temperature Operating-40~85deg Storage-55~150deg

Operating Humidity: 10~99%

Storage Humidity 10~99%

Net Weight 70KG

Certification UL,CE,ROHS,CCC

Cabinet Dimension l:1280mm h :960mm w:187mm

Gray Scale: 4096

Driving Method Static

Life span 50000H

Luminance 2000cd/aqm

Power Max:750w/sqm Average :300W/sqm

LED display description

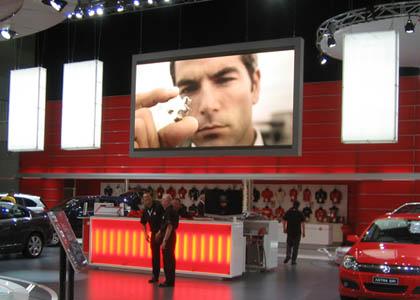

PH6 is an indoor led display with 1.07billion colors. There are a few kinds of driving modes, such as 1/8 scanning, and static constant driving mode, and so on. PLCC-4 SMD and chip 0603 are used. With SMD encapsulation, the brightness reaches 1400NITS. The pixel size of PH6 is 6mm, with 27,777dots per sqm. The rate of blind spot is less than 0.0001, and the gap among pixel less than 0.2mm, among unit modules less than 0.4mm. Indoor LED panel PH6 is good look, easy to disassemble and could receive various video signals, so it’s greatly fit for small concerts, parties, indoor led panel live broadcast of Stadiums and indoor led panel advertising, etc.
