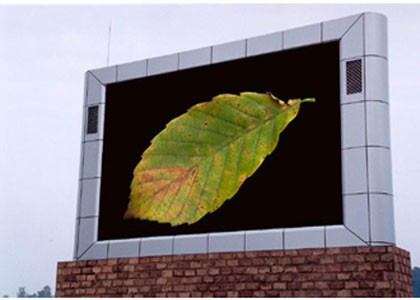

P14 outdoor housetop led screen

Screen parameter
pixel pitch                          14mm
LED configuration                2R,1G,1B
LED Density                       5041 pixel/sqm
Hor. Viewing angle              110deg
Vert. viewing angle              45deg
Ruggedness                       IP65
Temperature                       Operating-40~85deg Storage-55~150deg
Operating Humidity:            10~99%
Storage Humidity                 10~99%
Net Weight                         70KG
Certification                        UL,CE,ROHS,CCC
Cabinet Dimension               l:1280mm h :960mm w:187mm
Gray Scale:                         4096
Driving Method                     Static
Life span                            50000H
Luminance                          6000cd/aqm
Power                                Max:750w/sqm Average :300W/sqm

LED display description

High brightness It’s clear even if in the sunshine inside the viewing distance. The grayscale is controlled in 1024-4096, and the display color is vivid and more than 16.7M.
Static scanning technology We adopt static scanning technology, and high power driving mode to ensure the brightness. Brightness adjustment automatically It has the function of automatic brightness adjustment, and could get an exquisite effect even if in different environments. Large scale imported integrated circuit is used to highly improve the reliability, is also easy to debug and maintain.led display Screen can work in day and night, what’s more, it’s waterproof, dampproof, antiseptic, lightningproof, shock resistant and suitable for all kinds of hostile environments. There are many specifications of LED Chips, such as Φ26mm、?1mm, etc. In short, LED Display Screen is cost-effective.
