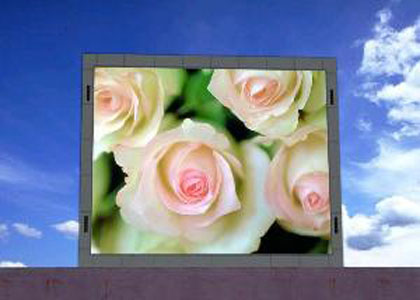

P12 Outdoor Roof Advertising Screen

Screen parameter
pixel pitch                                         12mm
LED configuration                2R,1G,1B
LED Density                       6944 pixel/sqm
Hor. Viewing angle              110deg
Vert. viewing angle              45deg
Ruggedness                       IP65
Temperature                       Operating-40~85deg Storage-55~150deg
Operating Humidity:            10~99%
Storage Humidity                 10~99%
Net Weight                         70KG
Certification                        UL,CE,ROHS,CCC
Cabinet Dimension               l:1280mm h :960mm w:187mm
Gray Scale:                         4096
Driving Method                     Static
Life span                            50000H
Luminance                          6000cd/aqm
Power                                Max:750w/sqm Average :300W/sqm

LED display description

Led display screen is a kind of high-tech products including photoelectric technology, micro-electric technology, computer technology and display technology. The luminous parts are made of LED screen, less electricity, higher brightness, and lower working voltage is needed, easy driving, long life span and steady performance. The area of LED Screen can be controlled via the modules. It takes the place of neon tubes in displaying information, and display information, letters, pictures, animation, and video images dynamically with rich colors, and the visual shock is living, in one word, it’s an epoch-making product in the information age. LED Display Screen is widely used in railway, aviation, stadium, meeting room, highway, commercial plaza, stock market, traffic control center, and hotel, etc.
