Arc LED display screen

Screen parameter
pixel pitch                          12nm
LED configuration                2R,1G,1B
LED Density                      5102 pixel/sqm
Hor. Viewing angle              110deg
Vert. viewing angle              45deg
Ruggedness                       IP65
Temperature                       Operating-40~85deg Storage-55~150deg
Operating Humidity:            10~99%
Storage Humidity                 10~99%
Net Weight                         70KG
Certification                        UL,CE,ROHS,CCC
Cabinet Dimension               l:1280mm h :960mm w:187mm
Gray Scale:                         4096
Driving Method                     Static
Life span                            50000H
Luminance                          6000cd/aqm
Power                                Max:750w/sqm Average :300W/sqm

LED display description and Advantages

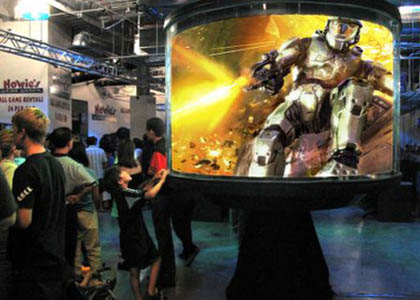

It’s the original genuine Circular led display in domestic, and the radius is 470mm, with 5.625°central angle, which is connected by two arcuate LED Screen. Circular LED Screen changes the arrangement of LED chips, and uses the vertical transmission mode of signals to instead of the horizontal ones. The key point is to decrease the curvature of modules and to improve the water proof function as well as the consistence of viewing angle. Unit cabinet of the screen is processed by digital tools to ensure the precision. This Circual LED sign has exported to abroad and finished the installation yet, which is highly praised by users.

1.LED panel with high brightness and consistency.

2.To adjust luminous components via exquisite image control technology，and to ensure the consistent brightness of the whole screen.

3.The grayscale of red, green and blue LED are 256 each, and there are 16,777,216 kinds of colors after revolving, that’s the genuine “fullcolor?/p>

4.High compatibility and it supports many kinds of input signals, such as S－Video、CVBS、DVI、and VGA, etc, and arc LED Display Screen could directly connect with DVD, VCD, VCR, and computers.
